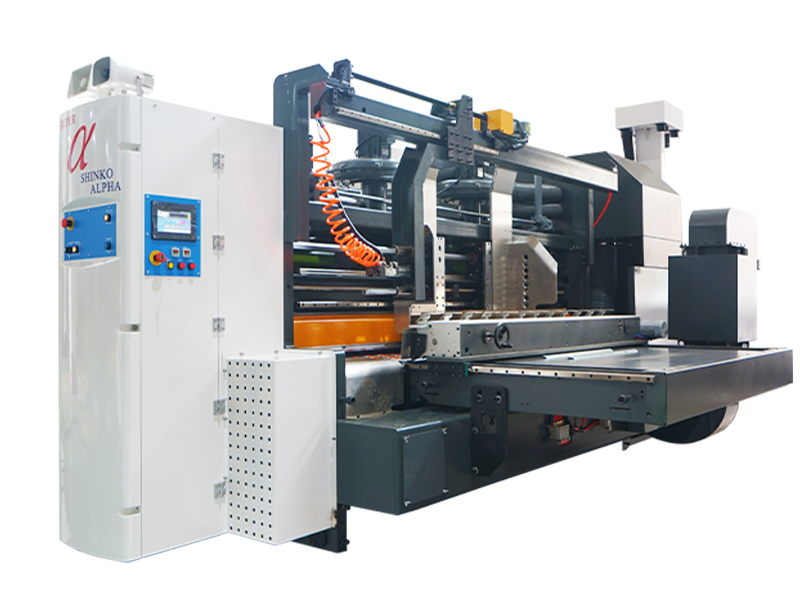

Shinko Super Alpha Four Colors Printer Slotter and Die-cutter Machine
Feeding Unit:
Unit
Part / System
Feeding Unit
Lead Edge Feeder
Feed Roll
Back Guide
Side Guide
Front Guide
Suction Blower
Sheet Cleaner
Frame Open / Close
Frame Locking Device
Automatic Zero (0)
Lubrication system
Indicating Button Lamp
Touch screen
Emergency Stop
Machine Rail
Printing Unit:
|
Unit |
Part / System |
|
Printing Unit |
Print Cylinder |
|
Anilox Roll |
|
|
Doctor blade |
|
|
Vacuum System for Board Transfer |
|
|
Register System |
|
|
Ink System |
|
|
Indicating button Lamp |
|
|
Automatic Zero (0) |
|
|
Automatic restoration |
|
|
Frame Open / Close |
|
|
Frame Locking Device |
|
|
Emergency Stop |
Slotting Unit:
|
Unit |
Part / System |
|
Slotting Unit |
Structure 8 slotting shafts |
|
Creasing |
|
|
Slotter (7.5mm thickness blade) |
|
|
Register System |
|
|
Automatic Zero |
|
|
Frame Open / Close |
|
|
Lubricating Oil Pump |
|
|
Emergency Stop |
Die-cutting Unit:
|
Unit |
Part / System |
|
Die-cutting Unit |
Die cut drum |
|
Anvil drum |
|
|
Feeding ring |
|
|
Register System |
|
|
Automatic Zero (0) |
|
|
Frame Locking Device |
|
|
Lubricating Oil Pump |
|
|
Emergency Stop |
|
|
Scrap conveyor |
|
|
Speed Compensation |
|
|
Anvil Grinding System |
Servo Control System:
|
System |
Part / System |
|
Servo Control System |
Servo Control System Touch Screen |
|
Information |
|
|
Production Planning |
|
|
Order Input |
|
|
Machine Setting |
Due to rapid development of intelligent production, with characteristics of high reset precision, quick setting speed, stable working performance, movable full servo control flexo printer will more suitable for the industry 4.0 developing trend. The gear drive printer will be replaced by the servo driving flexo printer gradually.
The movable full servo control flexo printer machine is designed by Shinko Japan. All drawings are from Shinko Japan. On the mechanical designs, the fixed type is changed to open close type. The printer belt transfer system is changed to vacuum transfer system. The other mechanical designs are the same as Shinko Japan fixed type design.
