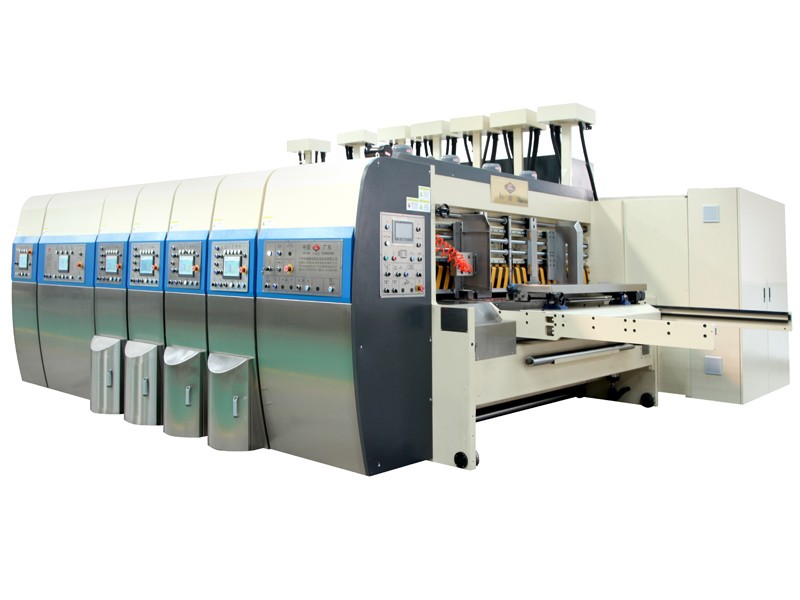

Computerized Flexo Printing Slotting Die-cutting Machine
High Definition Flexo Printing Features：
*One button operation function(test printing with one sheet, regular production can be done).
*Equipped with remote diagnosis and maintenance function.
*This machine is designed and made to high quality and safety standard, with the advantages of high speed, auto control and quick shift.
*Adopt high quality material and parts. All electronic components comform to CE standard, and safety standard can equal European.
*Well hardened and ground transmission gears, hardness more than 60(HRC).
*Auto zero return and auto reset.
*All gaps between cylinders and rollers are computerized and/or motorized control.

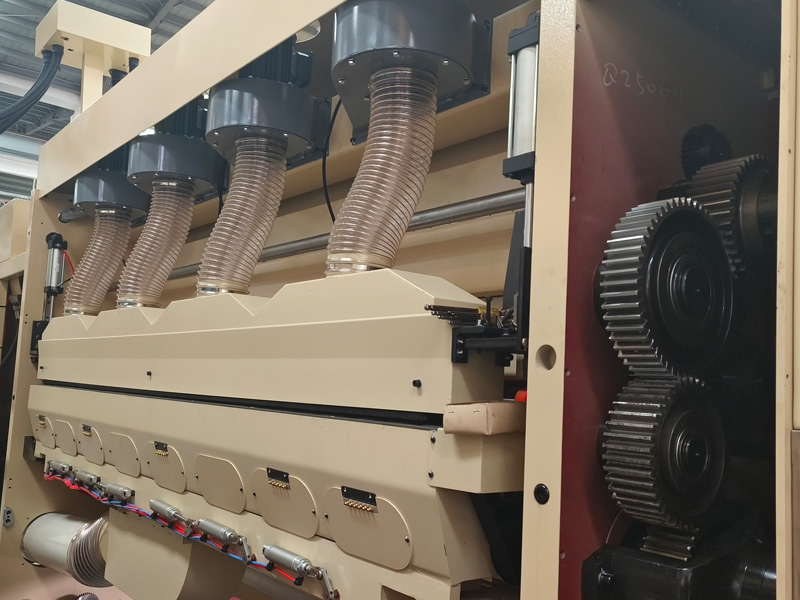

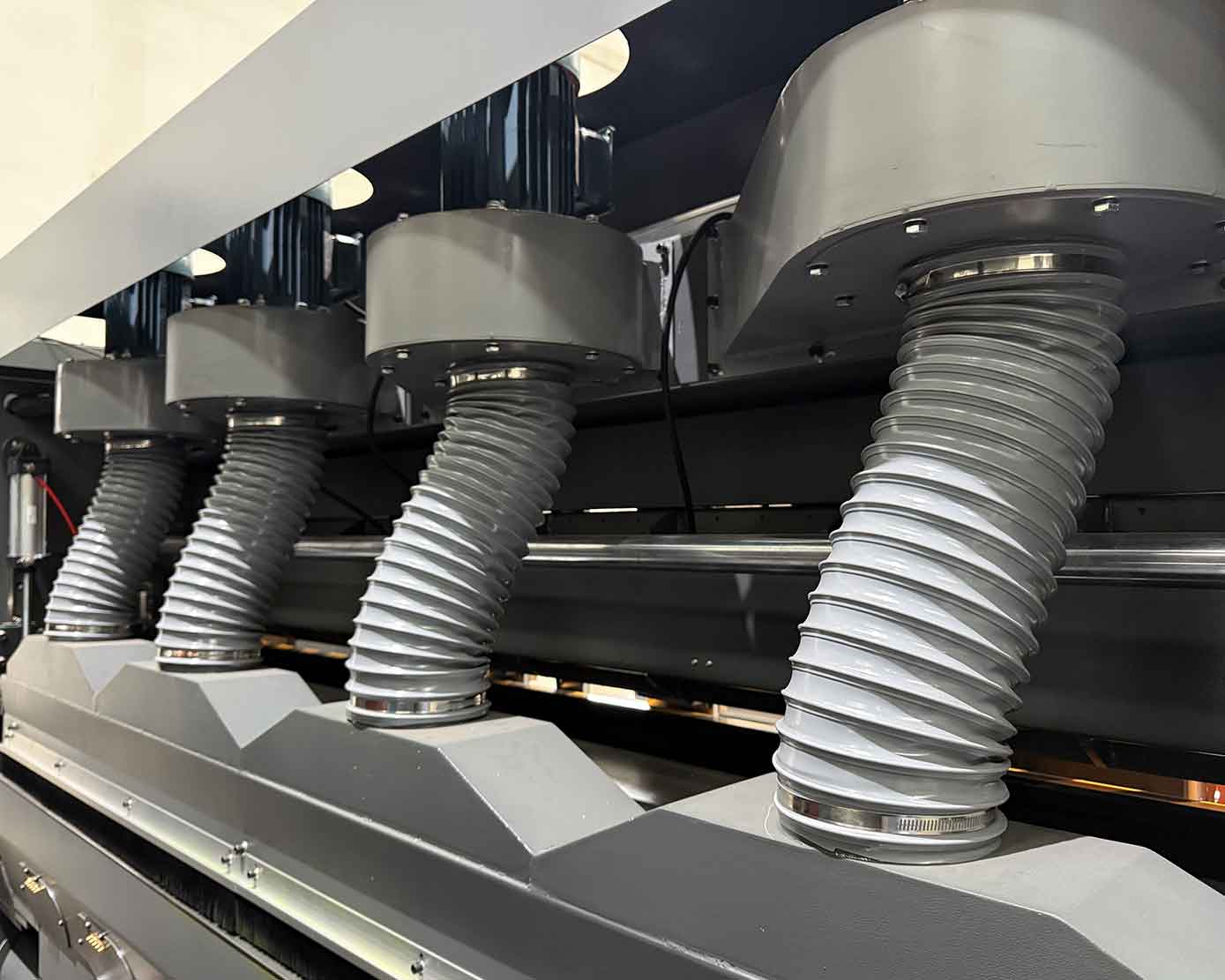

*Vacuum transfer system used in all printing sections.
*Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for longer time.
*All cylinders and rollers are chromed plated for ideal hardness.
*PLC control system with touch screen control.
*Able to save order,speed up the order shift.
*Able to connect to the ERP production management system(optional).
Specification：
| Data/Model | 900x2000 | 900x2400 | 1200x2400 | 1200x2800 | 1400x2400 | 1400x2800 | 1600x2800 | 1600x3200 | 1600x3600 |
| Max Machine Speed(pcs/min) | 300 | 300 | 250 | 220 | 220 | 200 | 200 | 180 | 120 |
| Max Feeding Size(mm) | 880x2000 | 880x2400 | 1180x2400 | 1180x2800 | 1380x2400 | 1380x2800 | 1570x2800 | 1570x3200 | 1570x3600 |
| Min Feeding Size(mm) | 280x660 | 280x660 | 320x680 | 320x680 | 360x680 | 360x680 | 420x710 | 420x710 | 420x710 |
| Skip Feeding(mm) | 1100x2000 | 1100x2400 | 1500x2400 | 1500x2800 | 1700x2400 | 1700x2800 | 1900x2800 | 1900x3200 | 1900x3600 |
| Max Printing Area(mm) | 850x2000 | 850x2400 | 1150x2400 | 1150x2800 | 1350x2400 | 1350x2800 | 1540x2800 | 1540x3200 | 1540x3600 |
| Thickness of Printing Plate(mm) | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
| Min Panel(mm)Slot Type L. | 245x65x245x65 | 245x65x245x65 | 250x65x250x65 | 250x65x250x65 | 250x65x250x65 | 250x65x250x65 | 265x65x265x65 | 265x65x265x65 | 265x65x265x65 |
| Max Slotting Depth(mm) | 250 | 250 | 320 | 320 | 320 | 320 | 560 | 560 | 560 |
| Max Thickness of Sheet(mm) | 10 | 10 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
Flexo Printing Machine Design Standard:
*Heavy duty construction
*Safety first design
*Hardened gear train
*Solid A3 steel frames, thickness 60mm
*Permanent mesh gearing
*Total pre-wiring of unit to drive cabinet
*Automatic machine shut down or non start if units are not closed or locked
