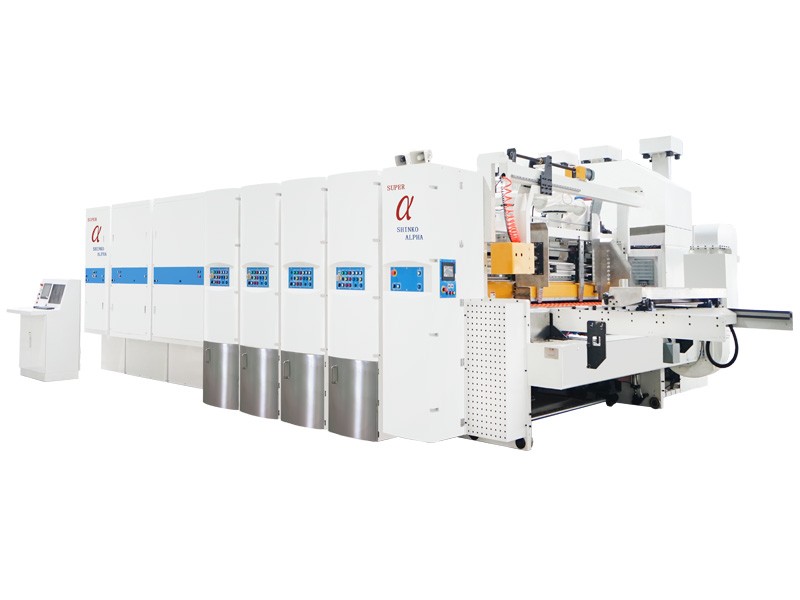

Flexo Printing Creasing Slotting Die-cutting Machine

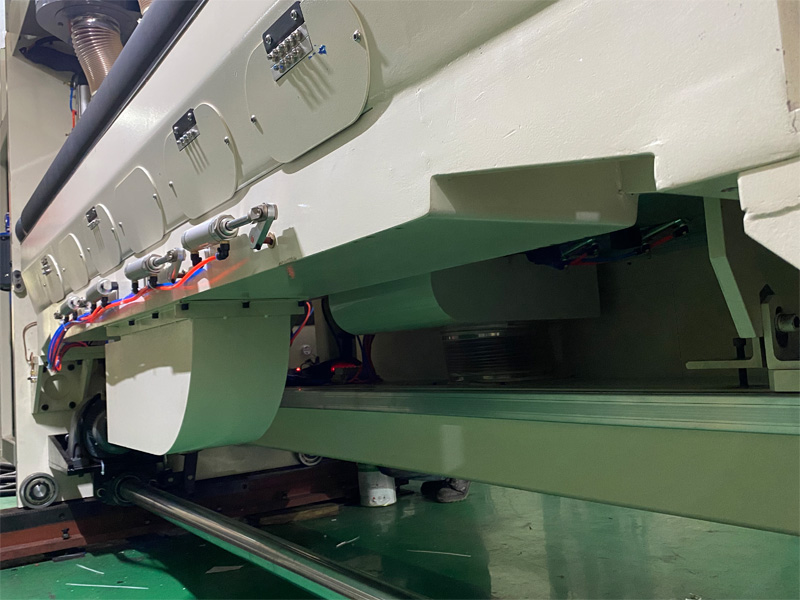

Feeding Unit:
Unit
Part / System
Feeding Unit
Lead Edge Feeder
Feed Roll
Back Guide
Side Guide
Front Guide
Suction Blower
Sheet Cleaner
Frame Open / Close
Frame Locking Device
Automatic Zero (0)
Lubrication system
Indicating Button Lamp
Touch screen
Emergency Stop
Machine Rail
Printing Unit:
|
Unit |
Part / System |
|
Printing Unit |

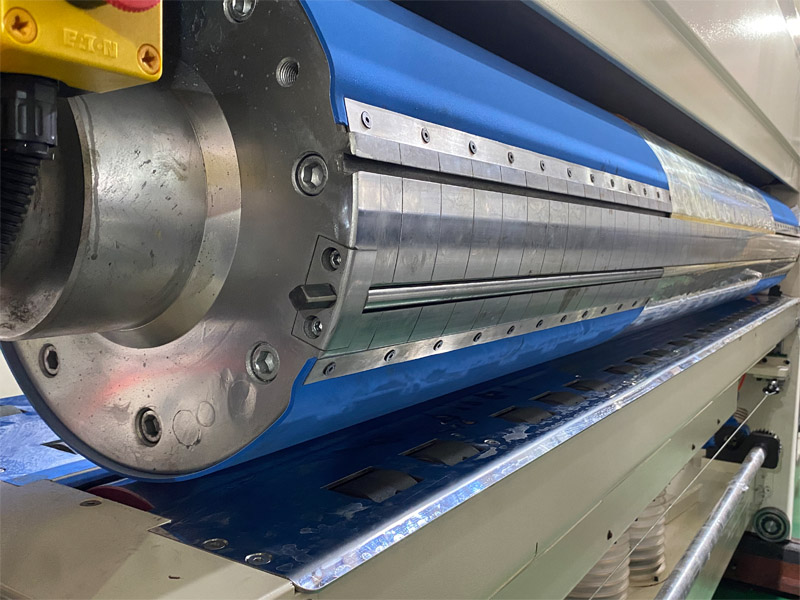

Print Cylinder |
|
Anilox Roll |
|
|
Doctor blade |
|
|
Vacuum System for Board Transfer |
|
|
Register System |
|
|
Ink System |
|
|
Indicating button Lamp |
|
|
Automatic Zero (0) |
|
|
Automatic restoration |
|
|
Frame Open / Close |
|
|
Frame Locking Device |
|
|
Emergency Stop |
Slotting Unit:
|
Unit |
Part / System |
|
Slotting Unit |

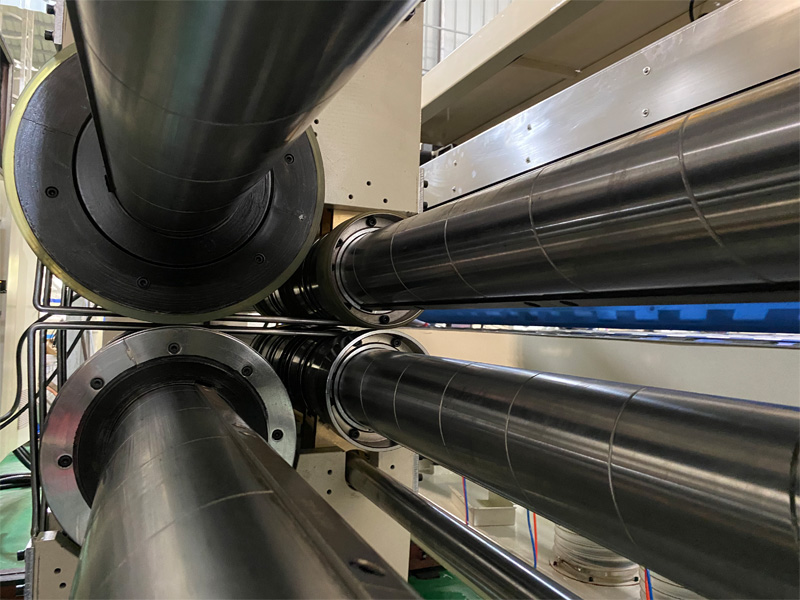

Structure 8 slotting shafts |
|
Creasing |
|
|
Slotter (7.5mm thickness blade) |
|
|
Register System |
|
|
Automatic Zero |
|
|
Frame Open / Close |
|
|
Lubricating Oil Pump |
|
|
Emergency Stop |
Die-cutting Unit:
|
Unit |
Part / System |
|
Die-cutting Unit |
Die cut drum |
|
Anvil drum |
|
|
Feeding ring |
|
|
Register System |
|
|
Automatic Zero (0) |
|
|
Frame Locking Device |
|
|
Lubricating Oil Pump |
|
|
Emergency Stop |
|
|
Scrap conveyor |
|
|
Speed Compensation |
|
|
Anvil Grinding System |
Servo Control System:
|
System |
Part / System |
|
Servo Control System |
Servo Control System Touch Screen |
|
Information |
|
|
Production Planning |
|
|
Order Input |
|
|
Machine Setting |
Offline Printing Machine Design Standard:
- Heavy duty construction
- Whole machine designed and produced based on Japan Shinko standard.
- Fast changing printing plate and automatic plate lock.
- Fast changing order.
- Less ink volume waste.
- Each units driven by Independent Yaskawa Servo motor.
- Automatic machine shut down or non start if units are not closed or locked
- Compressed air : 0.6 - 0.8 Mpa
- Printing die thickness : 7.2 mm (Plate + R-bak + Base film+Tape)
Top Printing/ Bottom Printing Characteristic:
*One-button oepration function.
*Equipped with remote diagnosis and maintenance function.
*Full servo-driven feeding unit, printing unit, slotting unit, die cutting unit.
*Adopt Japan Yaskawa servo control system.
*The printing cylinder is driven by a servo motor, and it takes only 15 seconds to rotate a circle.
*Adopts computerized automatic plate-locking system.
*Able to connect to the ERP production management system.
