Heavy Duty Large Size Cardboard Bottom Printing

Jumbo Three Colors Flexo Bottom Printing Machine

Household large size flexo printing, welcome to contact Keshenglong!

Item NO.:
K1
Lead Time:
3-5 months
Product Orgin:
China
Brand:
Keshenglong
Shipping Port:
Guangzhou/Shenzhen
Payment:
L/C, T/T

Inquiry now

Details

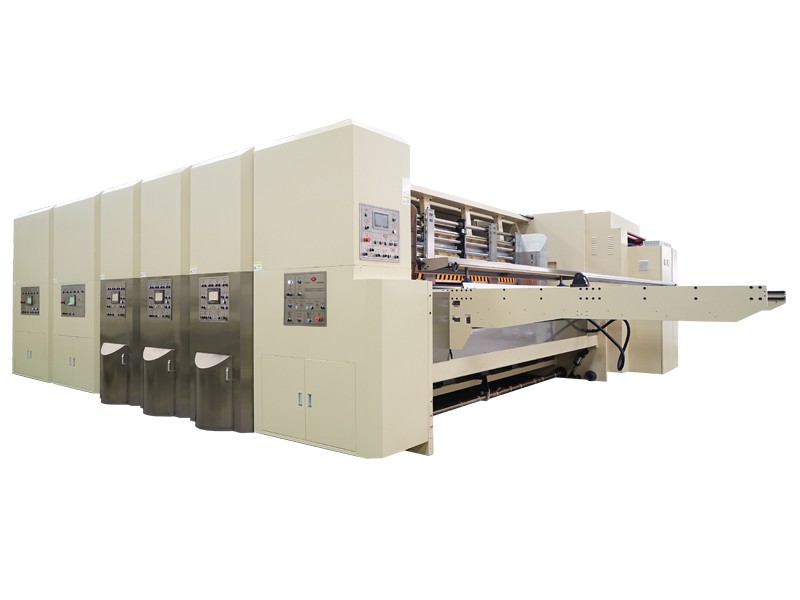

Jumbo Three Colors Flexo Bottom Printing Machine

Flexo Bottom Printing Characteristic:

*One-button operation function(test printing with one sheet, regular production can be done).

*Equipped with remote diagnosis and maintenance function.

*This machine is designed and made high quality and safety standard, with the advantages of high speed, auto control and quick shift.

*Adopt high quality materials and parts. All electronic components comform to CE standard, and safety standard can equal European.

*Well hardened and ground transmission gears, hardness more than 60(HRC).

*Auto zero return and auto reset.

*Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for longer time.

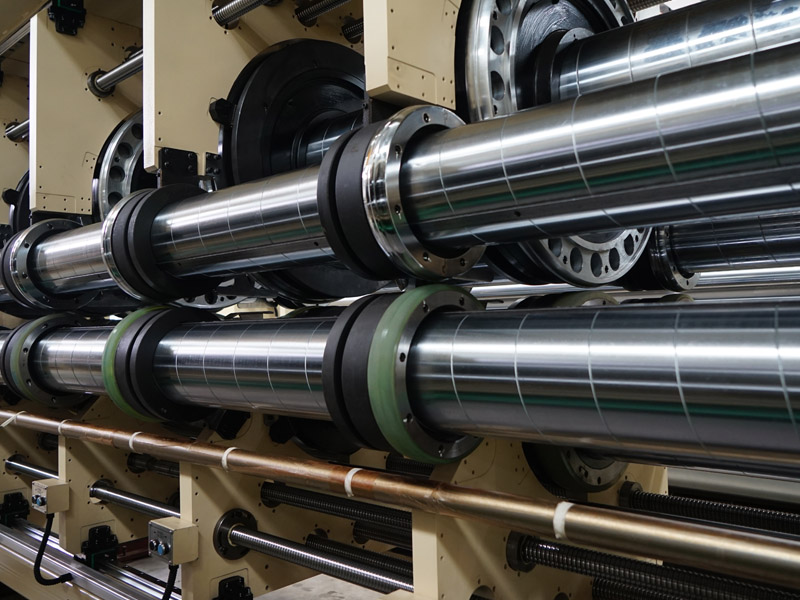

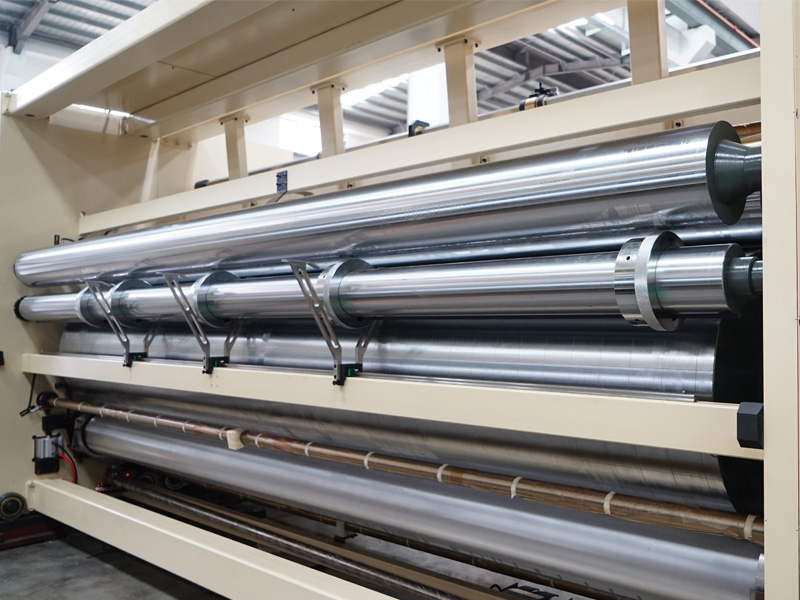

*All cylinders and rollers are chromed plated for ideal hardness.

*PLC control system with touch screen control.

*Able to save order,speed up the order shift.

*Able to connect to the ERP production management system.(optional)

Jumbo Bottom Printer Specification:

Data/Model	1600x3600	1600x4500	2200x3600	2200x4000	2200x4500	2200x5300	2600x3600	2600x4000	2600x4500	2600x5300	2600x6000	2600x6500
Max Machine Speed(pcs/min)	120	100	100	100	80	80	80	80	80	70	60	60
Max Feeding Size(mm)	1570x3600	1570x4500	2100x3600	2100x4000	2100x4500	2100x5300	2500x3600	2500x4000	2500x4500	2500x5300	2500x6000	2500x6500
Min Feeding Size(mm)	450x800	500x800	550x920	550x920	550x920	600x920	650x980	650x980	650x980	650x980	650x980	650x980
Max Printing Area(mm)	1570x3550	1570x4450	2100x3550	2100x3950	2100x4450	2100x5250	2500x3550	2500x3950	2500x4450	2500x5250	2500x5950	2500x6450
Thickness of Printing Plate(mm)	7.2	7.2	7.2	7.2	7.2	7.2	7.2	7.2	7.2	7.2	7.2	7.2
Min Panel(mm)Slot Type L.	280x100x280x100	280x100x280x100	330x110x330x110	330x110x330x110	330x110x330x110	330x110x330x110	360x110x360x110	360x110x360x110	360x110x360x110	360x110x360x110	360x110x360x110	360x110x360x110
Max Slotting Depth(mm)	560	560	750	750	750	750	850	850	850	850	850	850
Max Thickness of Sheet(mm)	16	16	16	16	16	18	16	16	16	18	18	18

Our Service:

Included operation and maintenance manual, supplied with electrical diagrams;

Machine setting up and testing;

Transportation to Guangdong port, China.
