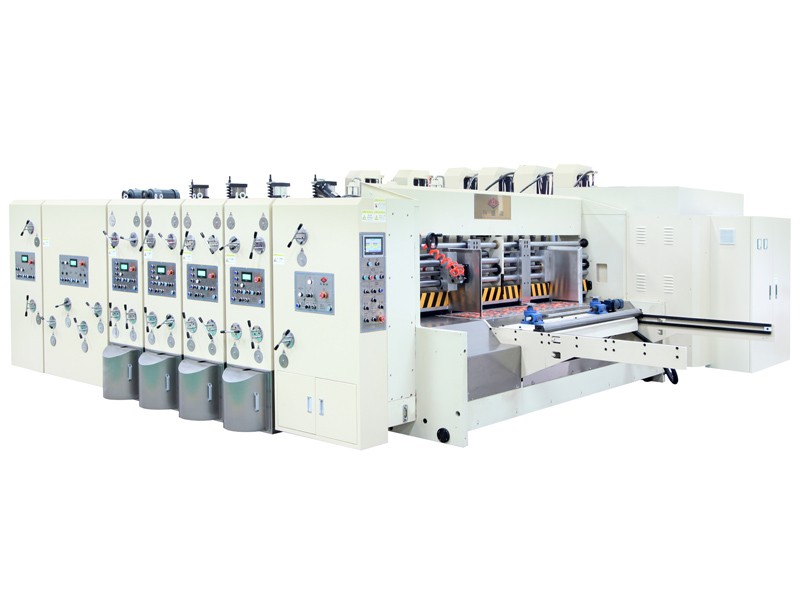

Flexo Printer Slotter Die Cutter Machine

4 Colors Carton Printing Slotting Die Cutting Machine

Semi-auto corrugated box printing machine, can also meet your needs of offline or inline.

Item NO.:
K4
Lead Time:
3-5 months
Product Orgin:
China
Brand:
Keshenglong
Shipping Port:
Guangzhou/Shenzhen
Payment:
L/C, T/T

Inquiry now

Details

4 Colors Carton Printing Slotting Die Cutting Machine

Corrugated Printing Machine Features：

*One button operation function(test printing with one sheet, regular production can be done).

*This machine is designed and made to high quality and safety standard, with the advantages of high speed, auto control and quick shift.

*Adopt high quality materials and parts. All electronic components comform to CE standard, and safety standard can equal European.

*Well hardened and ground transmission gears, hardness more than 60(HRC).

*Auto zero return and auto reset.

*All gaps between cylinders and rollers are manual adjusted, with self-lock device.

*Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for longer time.

*All cylinders and rollers are chromed plated for ideal hardness.

*PLC control system with touch screen control.

*Able to save order,speed up the order shift.

*Able to connect to the ERP production management system(optional).

Semi-auto Flexo Printing Machine Specification：

Data/Model	900*2000	900*2400	1200*2400	1200*2800	1400*2400	1400*2800	1600*2800	1600*3200
Max. Machine Speed(pcs/min)	300	300	250	220	220	200	200	180
Max.Feeding Size(mm)	880x2000	880x2400	1180x2400	1180x2800	1380x2400	1380x2800	1540x2800	1570x3200
Min.Feeding Size(mm)	280x690	280x700	320x750	320x750	350x750	350x700	420x810	420x810
Skip Feeding(mm)	1100x2000	1100x2400	1500x2400	1500x2800	1700x2400	1700x2800	1900x2800	1900x3200
Max. Printing Area(mm)	800x2000	800x2400	1150x2400	1150x2800	1320x2400	1320x2800	1540x2800	1540x3200
Thickness of Printing Plate(mm)	7.2	7.2	7.2	7.2	7.2	7.2	7.2	7.2
Min.Panel(mm) Slot Type L.	240x80x240x80	260x90x260x90	260x90x260x90	260x90x260x90	260x90x260x90	260x90x260x90	280x100x280x100	280x100x280x100
Max Slotting Depth(mm)	250	320	320	320	320	320	560	560
Max. Thickness of Sheet(mm)	8	12	12	12	12	12	12	12

Payment:

- 30% shall be paid by T/T as deposit within one week after order confirmed.

- 70% shall be paid by T/T before shipment or by irrevocable L/C at sight against shipping documents.

Color painted:

Standard color or specified by customer.
