Rotary Die-cutting Machine for Corrugated Boxes

Corrugated Carton Flexo Printing Slotting Die-cutting Machine Model K4

Computerized flexo printing slotting die-cutting machine of Model K4, using the semi-automatic design, easy to handle, easy to operate.

Item NO.:
K4
Lead Time:
3-5 months
Product Orgin:
China
Brand:
Keshenglong
Shipping Port:
Guangzhou/Shenzhen
Payment:
L/C, T/T

Inquiry now

Details

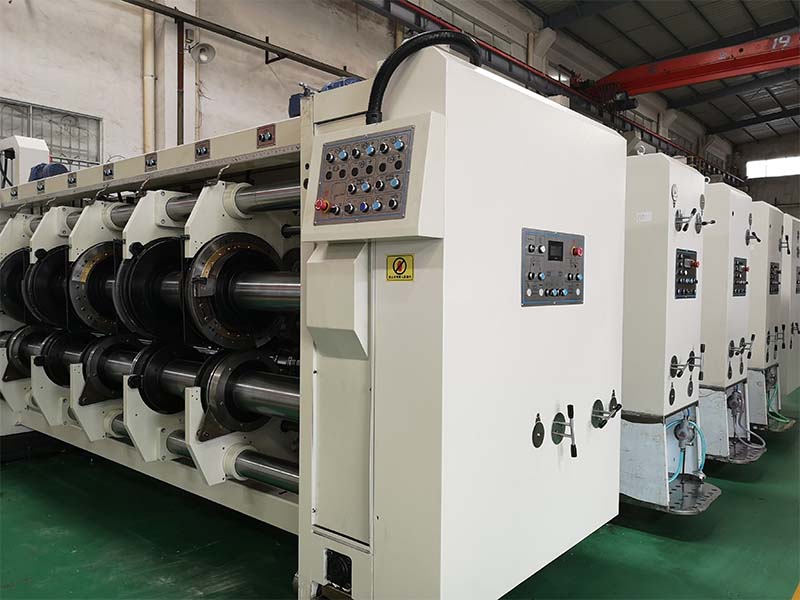

Corrugated Carton Flexo Printing Slotting Die-cutting Machine Model K4

Rotary Die Cutting Machine Features：

·Corrugated carton flexo printing slotting die-cutting machine is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.

·Auto high quality materials and parts.

·Well hardened and ground transmission gears, hardness more than 60(HRC).

·Auto zero return and auto reset.

·All gaps between cylinders and rollers are manual adjusted,squagging after adjustment.

·Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for long years.

·All cylinders and rollers are chromed plated for ideal hardness.

·PLC control system with touch screen control.

·Able to save order,speed up the order shift.

·All electronic and pneumatic components are with European standards.

·Able to facilitate the production management.

Rotary Die Cutting Machine for Corrugated Specification：

Data/Model	900*2000	1200*2000	1200*2400	1200*2800	1400*2400	1400*2800	1600*2800	1600*3200
Printing Speed(m/min)	200	200	200	200	200	200	200	200
Max. Machine Speed(pcs/min)	300	250	250	220	220	220	200	180
Max.Feeding Size(mm)	880x2000	1180x2000	1180x2400	1180x2800	1380x2400	1380x2800	1540x2800	1570x3200
Min.Feeding Size(mm)	280x640	320x700	320x700	320x700	350x700	350x700	420x760	420x760
Skip Feeding(mm)	1100x2000	1500x2000	1500x2400	1500x2800	1700x2400	1700x2800	1900x2800	1900x3200
Max. Printing Area(mm)	800x2000	1150x2000	1150x2400	1150x2800	1350x2400	1320x2800	1540x2800	1540x3200
Thickness of Printing Plate(mm)	7.2	7.2	7.2	7.2	7.2	7.2	7.2	7.2
Min.Panel(mm) Slot Type L.	240x80x240x80	260x90x260x90	260x90x260x90	260x90x260x90	260x90x260x90	260x90x260x90	280x100x280x100	280x100x280x100
Max Slotting Depth(mm)	250	320	320	320	320	320	560	560
Max. Thickness of Sheet(mm)	8	12	12	12	12	12	12	12
Dimension(LxWxH) T F	T:11659x4240x3200 F:12079X4240X3200	T:13015x4400x3500 F:13550x4400x3500	T:13015x4800x3500 F:13550x4800x3500	T:13015x5220x3500 F:13550x5220x3500	T:13570x4830x3500 F:14028x4820x3500	T:13570x5220x3500 F:14028x5220x3500	T:14021x5220x3500 F:14071x5220x3500	T:14021x5719x3500 F:14071x5719x3500

Our Team:

For the time being, we have more than 300 employees in our team, and have our own R&D, manufacturing, sales and after-sales service department, with our strict production and experienced construction team, taking the professional route and providing one-stop service for our customers.
