AP-1700 series Automatic die-cutting and creasing machine(with PCC system)

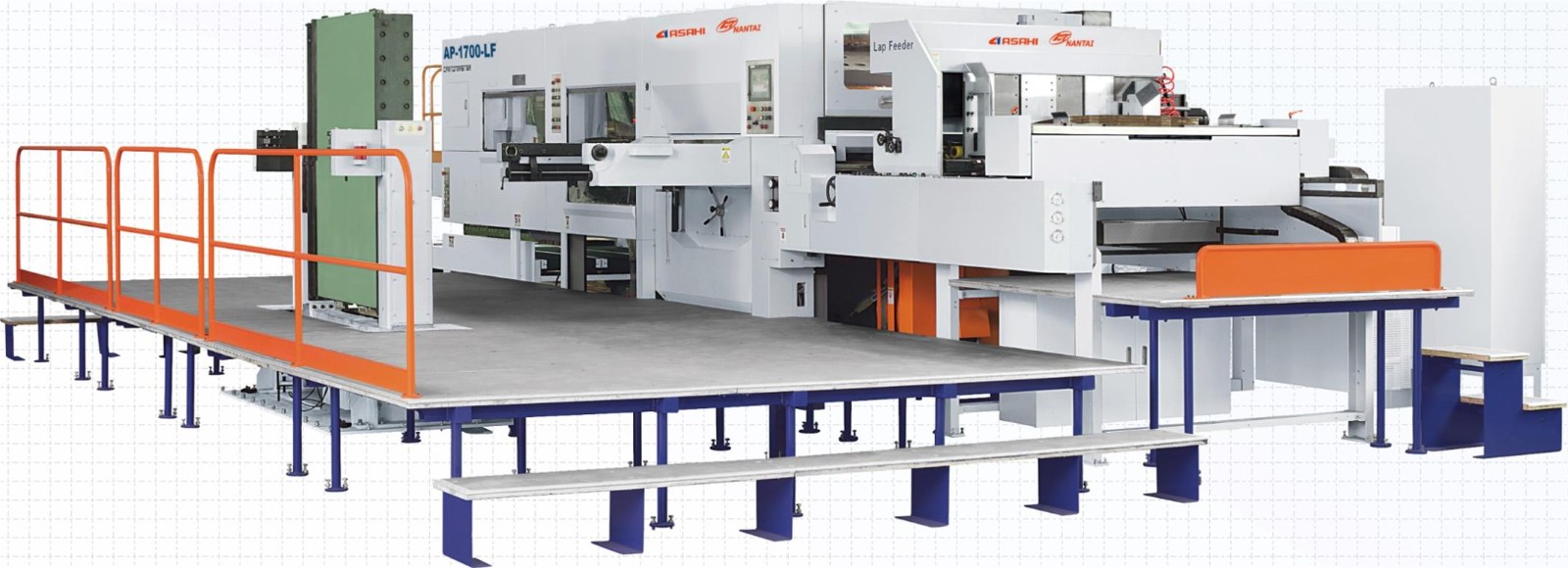

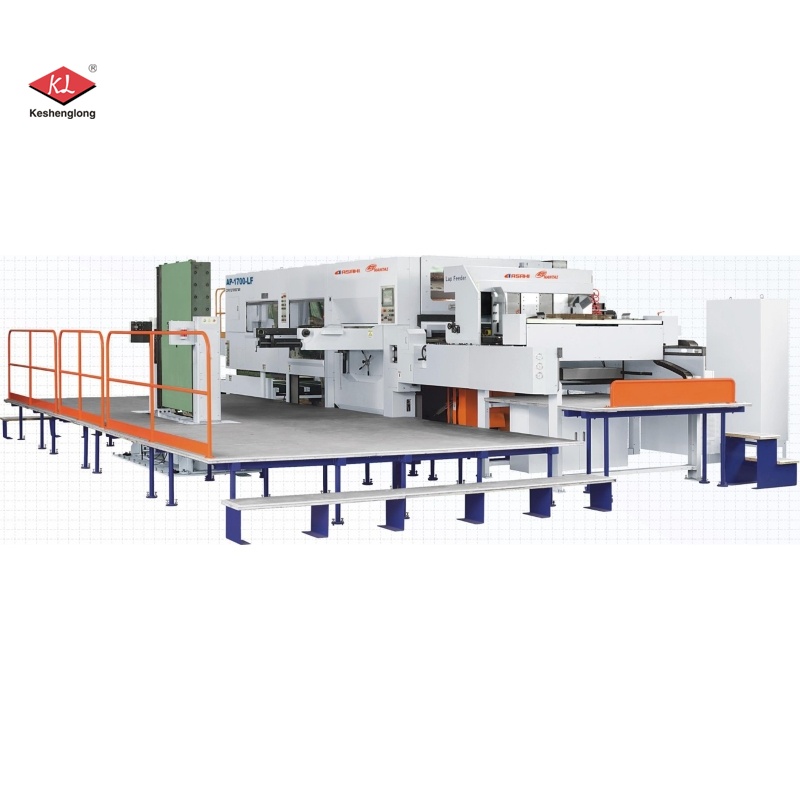

AP-1700 Automatic Die-cutting and Creasing Machine

The flatbed die cutting machine including servo drive lap feeder device, press unit and gripper edge waste knock off device.

Inquiry now

Details

AP-1700 Automatic Die-cutting and Creasing Machine

Model	AP-1700-LF	AP-1700-AL	AP-1700-BSGL
Max. Sheet Size	1700x1300mm	1700x1300mm	1700x1300mm
Min. Sheet Size	700×500㎜	700×500㎜	700×500㎜
Sheet Thickness Range	Laminated Corrugated board /corrugated board =1～9mm	Laminated Corrugated board /corrugated board =1～9mm	Laminated Corrugated board =1～9mm
Max.speed:	5750i.p.h	5750i.p.h	5750i.p.h
Max.operation pressure:	400ton	400ton	400ton
Min.Gripper Size:	10㎜（Spike type）	10mm（Spike type）	10mm（Spike type）
Feeding Type	Lap Feeder (Vacuum suction belt device)	4 shaft Lead edge feeder +Servo drive belt positioning device	Bottom suction cup feeding + servo drive belt positioning device
Delivery Type	Deep pile delivery(optional)/ batch type delivery(standard)	Deep pile delivery(optional)/ batch type delivery(standard)	Deep pile delivery(optional)/ batch type delivery(standard)
Required Power Supply	60KW（Main motor 30KW）	60KW（Main motor 30KW）	60KW（Main motor 30KW）
Dimension(LWH)	12300×6710×2700㎜	12300×6710×2700㎜	12300×6710×2700㎜
Machine Weight：	50tons	50tons	50tons
