Guangzhou Keshenglong Carton Packing Machine Co.,Ltd.
Automatic Flexo Printer Slotter Die-Cutter Machine (Jumbo)
home >

Automatic Flexo Printer Slotter Die-Cutter Machine (Jumbo)

 >Jumbo Size Corrugated Box Three Colors Flexo Printing Machine

Automatic Flexo Printing Slotting Die-cutting for Jumbo Machine
Automatic Flexo Printing Slotting Die-cutting for Jumbo Machine

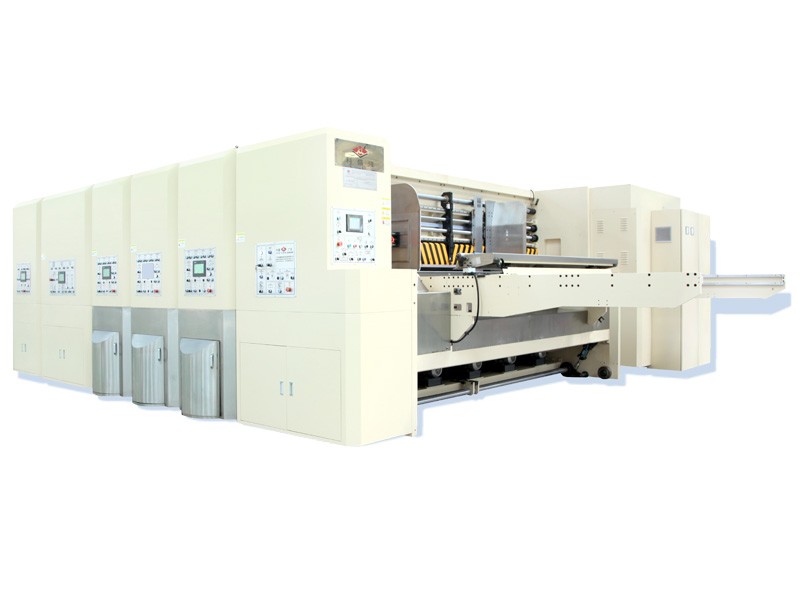

Jumbo Size Corrugated Box Three Colors Flexo Printing Machine

Jumbo size corrugated carton box, meet your needs of customized size. Top printing for multi colors.

  • Item NO.:

    K1

  • Lead Time:

    3-5 months

  • Product Orgin:

    China

  • Brand:

    Keshenglong

  • Shipping Port:

    Guangzhou/Shenzhen

  • Payment:

    L/C, T/T
Inquiry now
Details

Jumbo Size Corrugated Box Three Colors Flexo Printing Machine


Computerized Flexo Printing Machine Characteristic:

*One-button operation function(test printing with one sheet, regular production can be done).

*Equipped with remote diagnosis and maintenance function.

*This machine is designed and made high quality and safety standard, with the advantages of high speed, auto control and quick shift.

*Adopt high quality materials and parts. All electronic components comform to CE standard, and safety standard can equal European.

*Well hardened and ground transmission gears, hardness more than 60(HRC).

*Auto zero return and auto reset.

*Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for longer time.

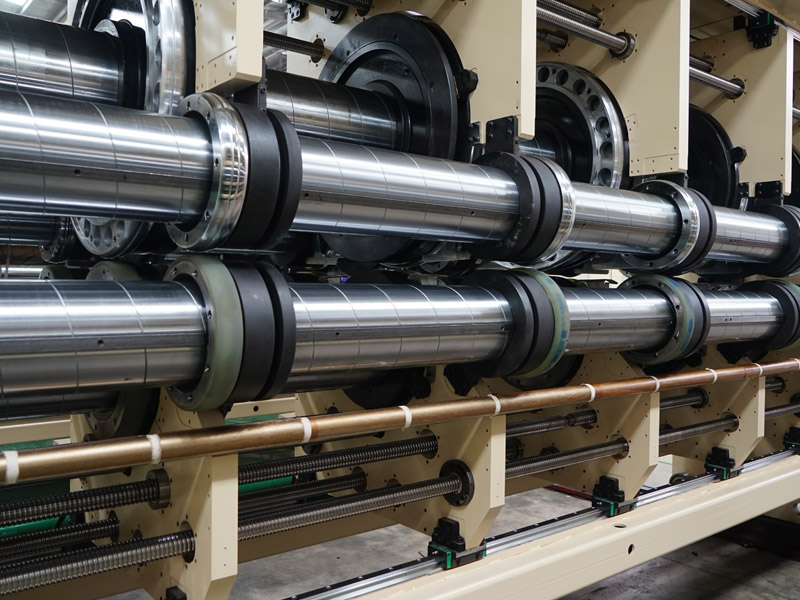

*All cylinders and rollers are chromed plated for ideal hardness.

*PLC control system with touch screen control.

*Able to save order,speed up the order shift.

*Able to connect to the ERP production management system.(optional)


Jumbo Printer Slotter RDC Specification:

Data/Model 1600x3600 1600x4500 2200x3600 2200x4000 2200x4500 2200x5300 2600x3600 2600x4000 2600x4500 2600x5300 2600x6000 2600x6500
Max Machine Speed(pcs/min) 120 100 100 100 80 80 80 80 80 70 60 60
Max Feeding Size(mm) 1570x3600 1570x4500 2100x3600 2100x4000 2100x4500 2100x5300 2500x3600 2500x4000 2500x4500 2500x5300 2500x6000 2500x6500
Min Feeding Size(mm) 450x800 500x800 550x920 550x920 550x920 600x920 650x980 650x980 650x980 650x980 650x980 650x980
Max Printing Area(mm) 1570x3550 1570x4450 2100x3550 2100x3950 2100x4450 2100x5250 2500x3550 2500x3950 2500x4450 2500x5250 2500x5950 2500x6450
Thickness of Printing Plate(mm) 7.2 7.2 7.2 7.2 7.2 7.2 7.2 7.2 7.2 7.2 7.2 7.2
Min Panel(mm)Slot Type L. 280x100x280x100 280x100x280x100 330x110x330x110 330x110x330x110 330x110x330x110 330x110x330x110 360x110x360x110 360x110x360x110 360x110x360x110 360x110x360x110 360x110x360x110 360x110x360x110
Max Slotting Depth(mm) 560 560 750 750 750 750 850 850 850 850 850 850
Max Thickness of Sheet(mm) 16 16 16 16 16 18 16 16 16 18 18 18
