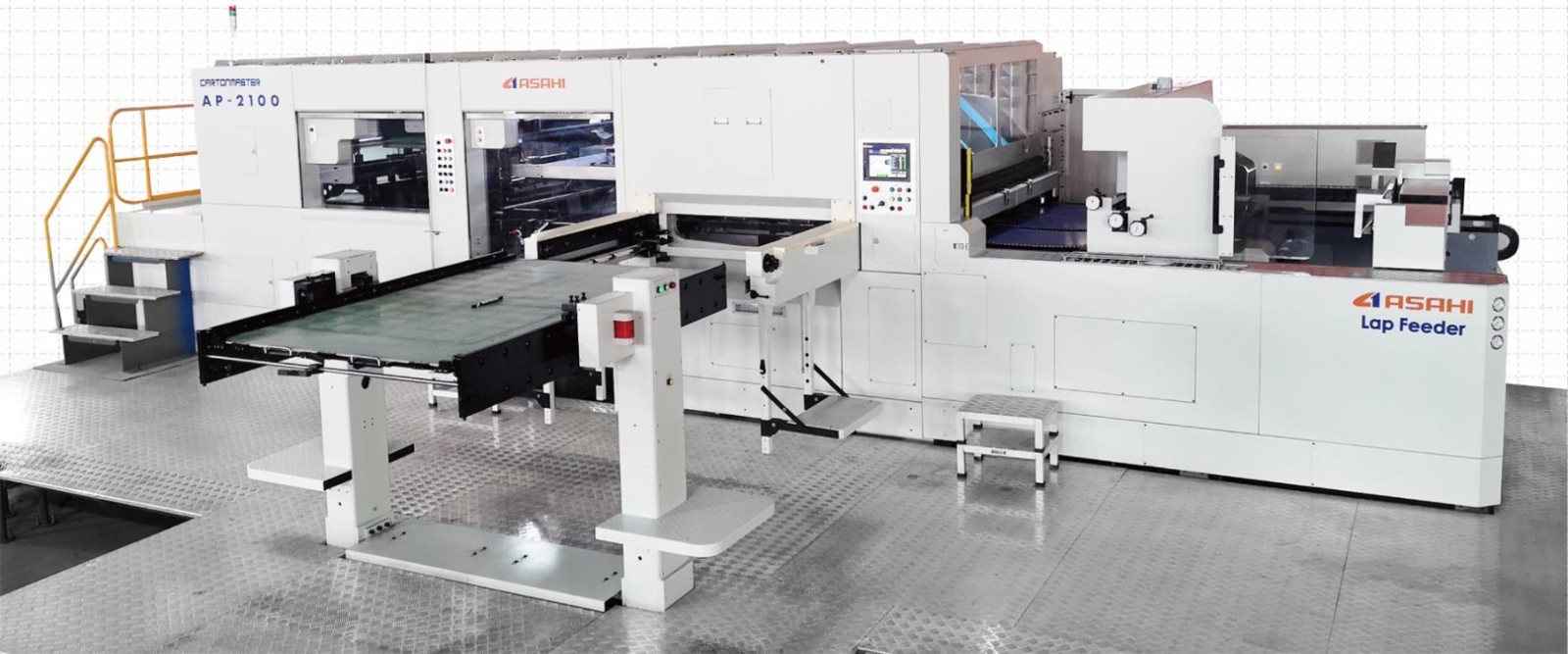

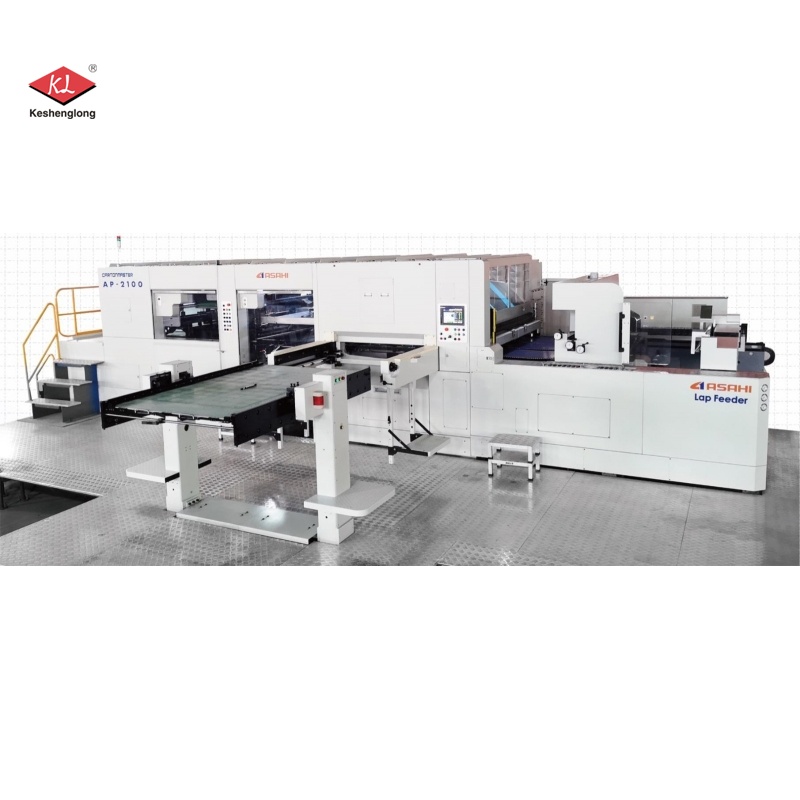

AP-2100 Automatic Flatbed Die Cutting and Creasing Machine

Inquiry now

Details

AP-2100 Automatic Flatbed Die Cutting and Creasing Machine

Model	AP-2100EII-LF	AP-2100EIII-LF
Max. Sheet Size	2100x1300㎜	2100x1300㎜
Min. Sheet Size	700*500㎜	700*500㎜
Sheet Thickness Range	Laminated Corrugated board /corrugated board =1～9mm	Laminated Corrugated board /corrugated board =1～9mm
Max.Speed	5500i.p.h	7000i.p.h.
Feeding Type	Lap Feeder (vacuum suction belt feeding)	Lap Feeder (vacuum suction belt feeding)
Max.Operation Pressure	450 tons	450 tons
Required Power Supply	70kw（Main motor 30kw）	70kw（Main motor 30kw）
Dimension	13000×7500×2600㎜	13000×7500×2600㎜
Machine Weight：	55tons	70tons
Degree of Automation	With PCC system (one-click order change function)	With PCC system (one-click order change function)
