Stripping Banking and Waste Removal Die Cutting Machine

AP-1060 Automatic Die Cutting and Creasing Machine

Inquiry now

Details

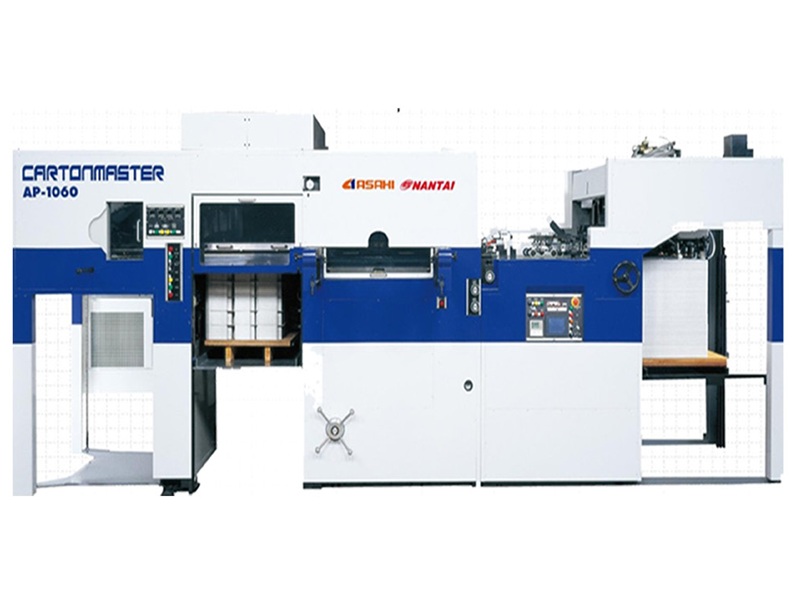

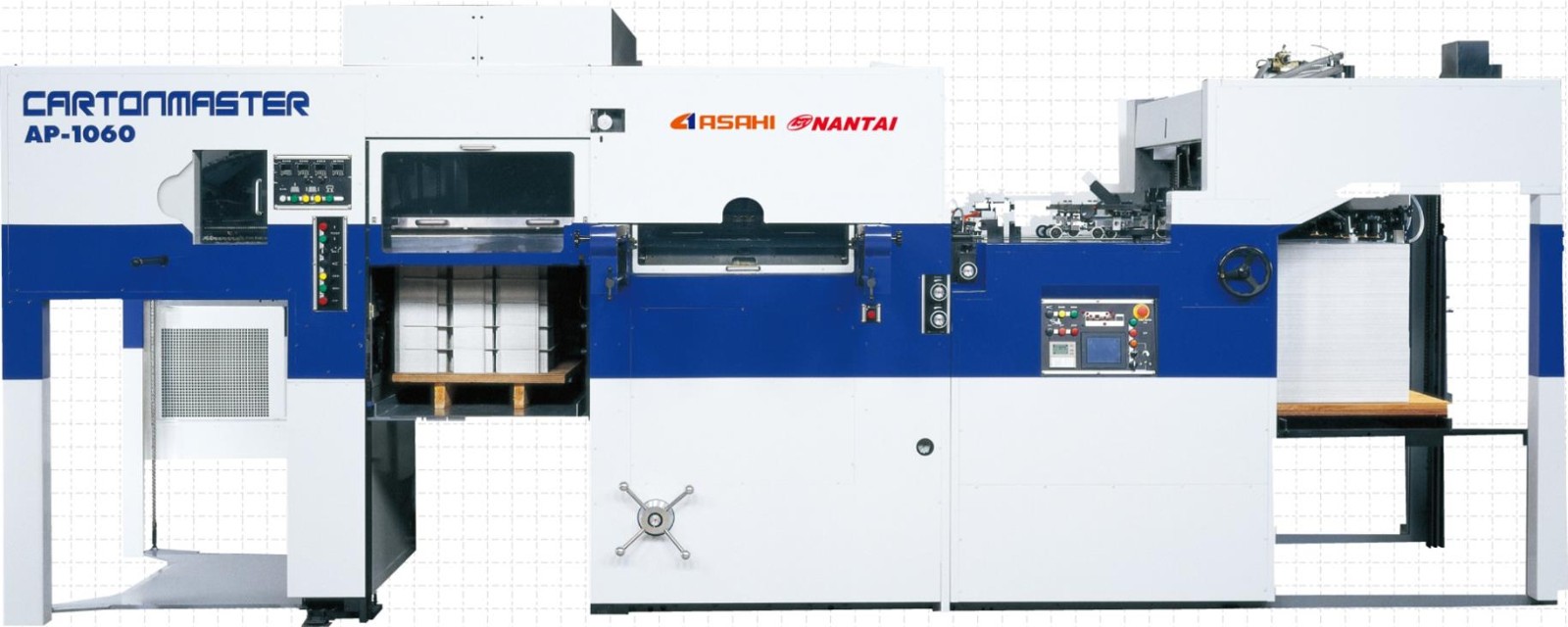

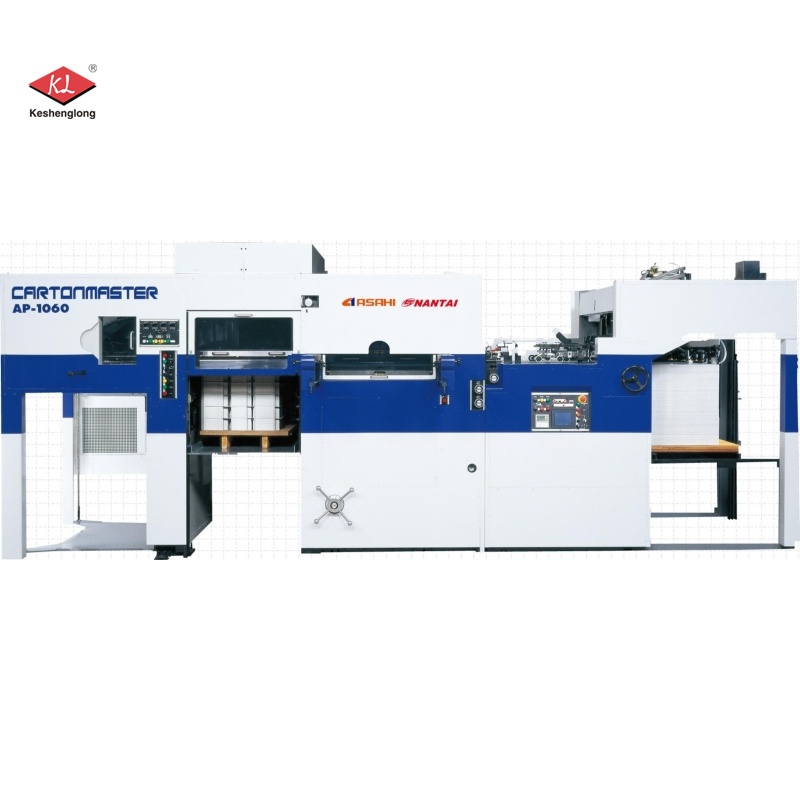

AP-1060 Automatic Die Cutting and Creasing Machine

Model	AP-1060-TS/ AP-1060III-TS	AP-1060-TSB	AP-1060-TBS
Max. Sheet Size	1060x740mm	1060x740mm	1060x740mm
Sheet Thickness	0.1～1.5mm cardboard， Corrugated cardboard ＜4mm	0.1～1.5mm cardboard， Corrugated cardboard ＜4mm	0.1～1.5mm cardboard， Corrugated cardboard ＜4mm
Max.Speed	7500i.p.h/9000i.p.h	7500i.p.h	7500i.p.h
Stripping type	Middle and three sides of waste removal	Blanking/ stripping switch	Middle waste removal/ blanking/ four sides waste removal
Max.operation pressure	250tons	250tons	250tons
Min.Gripper Size:	8mm（Pinch type）	8mm（Pinch type）	8mm (pinch type）
Required power supply	21.5KW	22.5KW	28KW
Dimension(LWH)	5761x4000x2290mm	5761x4436x2577mm	6970x4436x2577mm
Machine Weight：	13tons	13.5tons	14.5tons
Degree of Automation	＊＊＊	＊＊＊＊	＊＊＊＊＊
