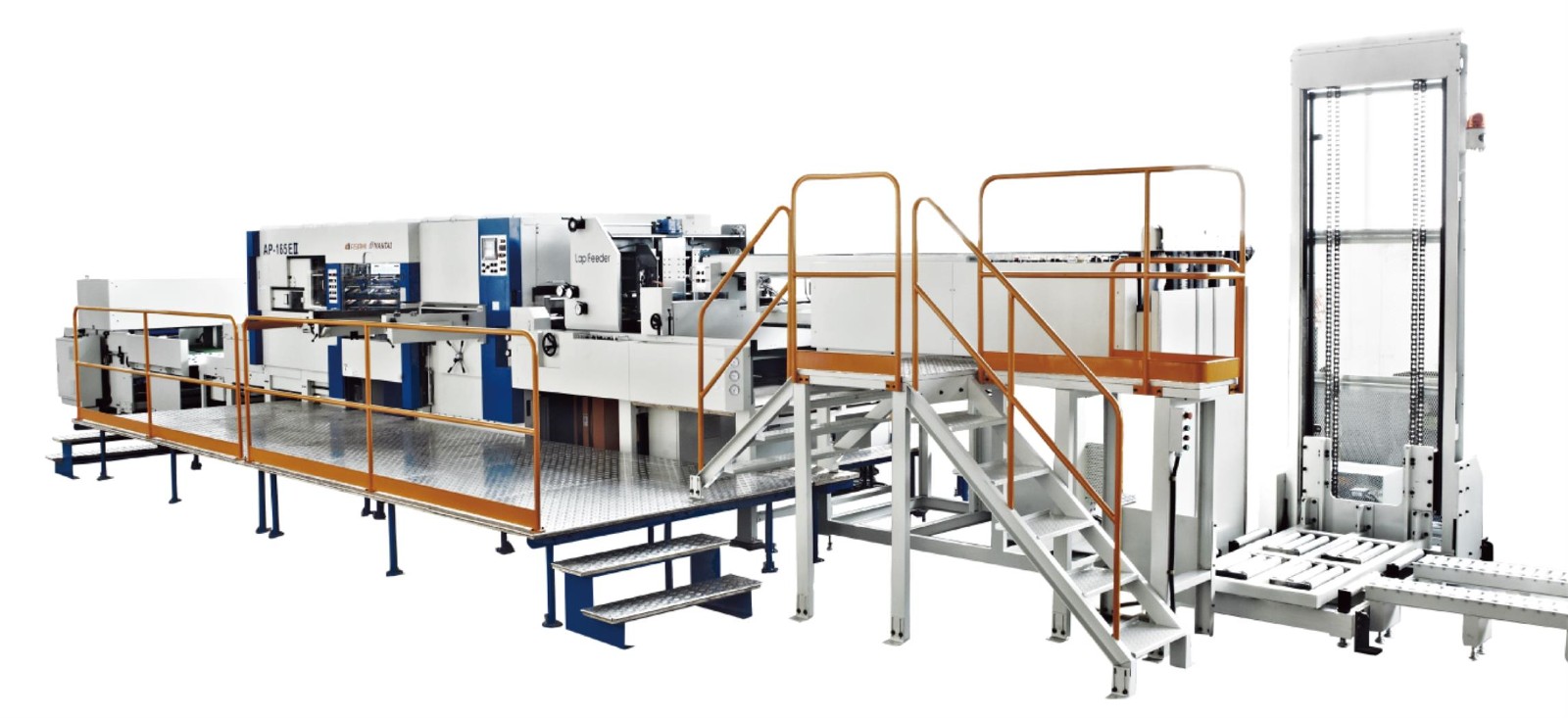

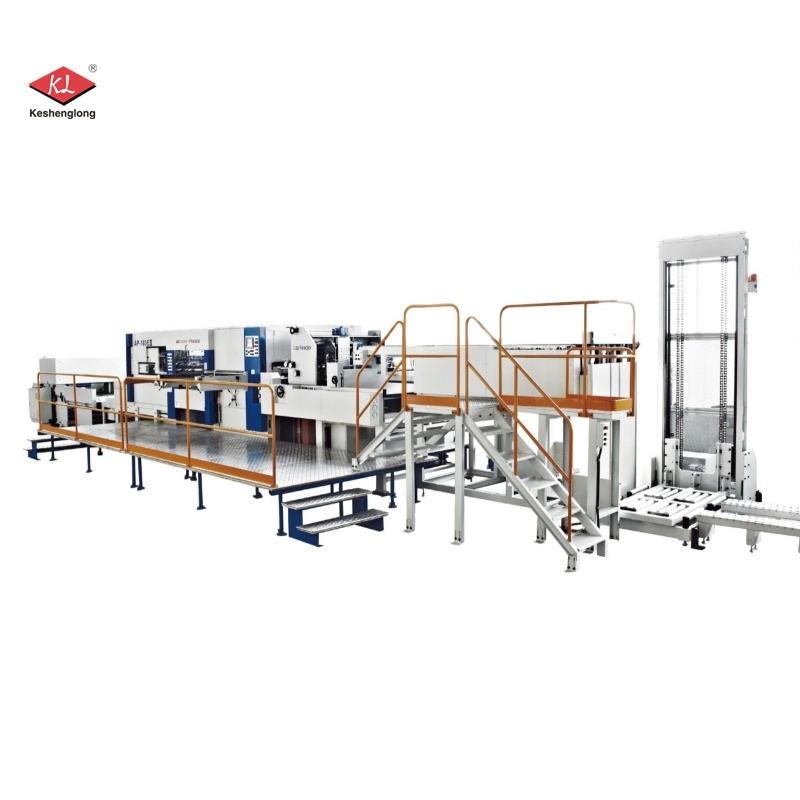

AP-165EII Automatic die-cutting and creasing machine

AP-165EIII series Automatic die-cutting machine include: servo drive lap feeder device, feeding push gauge positioning device and servo drive belt positioning device(optional).

Inquiry now

Details

AP-165EII Automatic die-cutting and creasing machine

Model	AP-165EIII-LF	AP-165EIII-AL	AP-165EIII-BSGL
Max. Sheet Size	1650*1200㎜	1650*1200㎜	1650*1200㎜
Min. Sheet Size	600*500㎜	600*500㎜	600*500㎜
Sheet Thickness Range	Laminated Corrugated board /corrugated board =1～9mm	Laminated Corrugated board /corrugated board =1～9mm	Laminated Corrugated board =1～9mm
Max.speed:	6000i.p.h	6000i.p.h	6000i.p.h
Max.operation pressure:	400tons	400tons	400tons
Min.Gripper Size:	10㎜（Spike type）	10mm（Spike type）	10mm（Spike type）
Feeding Type	Lap Feeder (Vacuum suction belt device)	4 shaft Lead edge feeder +Servo drive belt positioning device	Bottom suction cup feeding + servo drive belt positioning device
Delivery Type	Deep pile delivery(optional)/ batch type delivery(standard)	Deep pile delivery(optional)/ batch type delivery(standard)	Deep pile delivery(optional)/ batch type delivery(standard)
Required Power Supply	36KW（Main motor 22KW）	36KW（Main motor 22KW）	36KW（Main motor 22KW）
Dimension (LWH)	9790×5480×2440㎜	9790×5480×2440㎜	9790×5480×2440㎜
Machine Weight：	42tons	42tons	42tons

Model	AP-165EII-LF	AP-165EII-AL	AP-165EII-BSGL
Max. Sheet Size	1650*1200㎜	1650*1200㎜	1650*1200㎜
Min. Sheet Size	600*500㎜	600*500㎜	600*500㎜
Sheet Thickness Range	Laminated Corrugated board /corrugated board =1～9mm	Laminated Corrugated board /corrugated board =1～9mm	Laminated Corrugated board =1～9mm
Max.speed:	5500i.p.h	5500i.p.h	5200-5500i.p.h
Max.operation pressure:	400tons	400tons	400tons
Min.Gripper Size:	10㎜（Spike type）	10mm（Spike type）	10mm（Spike type）
Feeding Type	Lap Feeder (Vacuum suction belt device)	4 shaft Lead edge feeder +Servo drive belt positioning device	Bottom suction cup feeding + servo drive belt positioning device
Delivery Type	Deep pile delivery(optional)/ batch type delivery(standard)	Deep pile delivery(optional)/ batch type delivery(standard)	Deep pile delivery(optional)/ batch type delivery(standard)
Required Power Supply	36kw（Main motor 22kw）	36kw（Main motor 22kw）	36kw（Main motor 22kw）
Dimension (LWH)	9790×5480×2440㎜	9790×5480×2440㎜	9790×5480×2440㎜
Machine Weight：	38tons	38tons	38tons
