Vaccum Transfer Top Printing Down Folding Machine

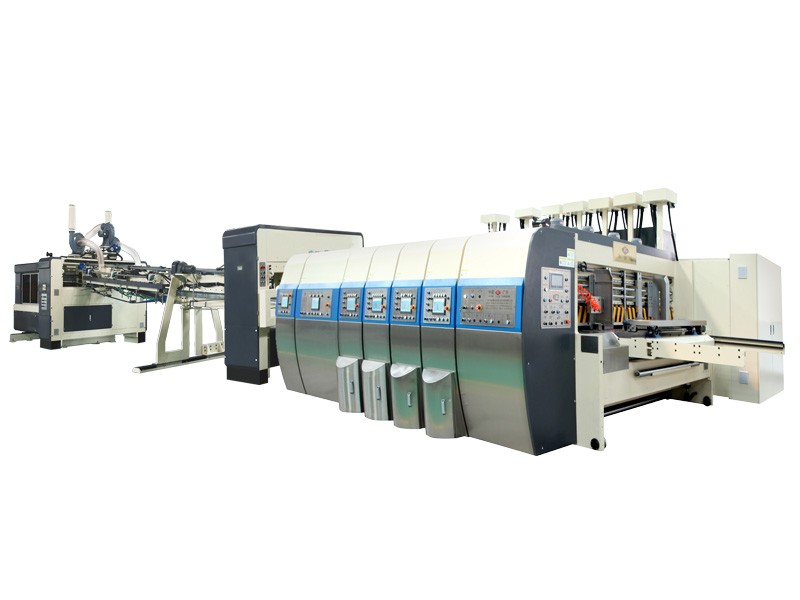

K6-1200X2800 Flexo Printer Slotter Rotary Die Cutter Inline FFG

Flexo printing is a high-speed, roll-to-roll printing process widely used in packaging and corrugated carton box production. It utilizes flexible relief plates (typically made of rubber or photopolymer) to transfer ink onto various substrates. The ink is metered through an anilox roller, ensuring precise and consistent application.

Item NO.:
k6
Lead Time:
3-5 months
Product Orgin:
China
Brand:
Keshenglong
Shipping Port:
Guangzhou/Shenzhen
Payment:
L/C, T/T

Inquiry now

Details

K6-1200X2800 Flexo Printer Slotter Rotary Die Cutter Inline FFG

Top and Bottom Printing Features：

*One button operation function(test printing with one sheet, regular production can be done).

*Equipped with remote diagnosis and maintenance function.

*This machine is designed and made to high quality and safety standard, with the advantages of high speed, auto control and quick shift.

*Adopt high quality material and parts. All electronic components comform to CE standard, and safety standard can equal European.

*Well hardened and ground transmission gears, hardness more than 60(HRC).

*Auto zero return and auto reset.

*All gaps between cylinders and rollers are computerized and/or motorized control.

*Vacuum transfer system used in all printing sections.

*Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for longer time.

*All cylinders and rollers are chromed plated for ideal hardness.

*PLC control system with touch screen control.

*Able to save order,speed up the order shift.

*Able to connect to the ERP production management system(optional).

Specification：

Data/Model	900x2000	900x2400	1200x2400	1200x2800	1400x2400	1400x2800	1600x2800	1600x3200	1600x3600
Max Machine Speed(pcs/min)	300	300	250	220	220	200	200	180	120
Max Feeding Size(mm)	880x2000	880x2400	1180x2400	1180x2800	1380x2400	1380x2800	1570x2800	1570x3200	1570x3600
Min Feeding Size(mm)	280x660	280x660	320x680	320x680	360x680	360x680	420x710	420x710	420x710
Skip Feeding(mm)	1100x2000	1100x2400	1500x2400	1500x2800	1700x2400	1700x2800	1900x2800	1900x3200	1900x3600
Max Printing Area(mm)	850x2000	850x2400	1150x2400	1150x2800	1350x2400	1350x2800	1540x2800	1540x3200	1540x3600
Thickness of Printing Plate(mm)	7.2	7.2	7.2	7.2	7.2	7.2	7.2	7.2	7.2
Min Panel(mm)Slot Type L.	245x65x245x65	245x65x245x65	250x65x250x65	250x65x250x65	250x65x250x65	250x65x250x65	265x65x265x65	265x65x265x65	265x65x265x65
Max Slotting Depth(mm)	250	250	320	320	320	320	560	560	560
Max Thickness of Sheet(mm)	10	10	12	12	12	12	12	12	12

Key Features:

Flexible Plates: Made of soft, compressible materials, allowing printing on uneven or delicate surfaces.

Fast-Drying Inks: Uses water-based, solvent-based, or UV-curable inks for quick drying and high-speed production.

Versatile Substrates: Suitable for paper, plastic films, corrugated board, metallic foils, and more.

Eco-Friendly Options: Water-based and UV inks reduce environmental impact compared to traditional solvent inks.

Advantages:

High-speed production with quick setup.

Cost-effective for medium to large print runs.

Compatible with inline finishing (laminating, die-cutting).
