Automatic Carton Box Printing Machine

We are automatic box packing machine manufacturers，the Shinko Super Alpha movable full servo hard die cutter machine, give you the brand new experience.

Item NO.:
Shinko Super Alpha
Lead Time:
3-5 months
Product Orgin:
Japan, China
Brand:
Keshenglong
Shipping Port:
Guangzhou/Shenzhen
Payment:
L/C, T/T

Inquiry now

Details

Automatic Carton Box Printing Machine

Feeding Unit:

Unit	Part / System
Feeding Unit	Lead Edge Feeder
	Feed Roll
	Back Guide
	Side Guide
	Front Guide
	Suction Blower
	Sheet Cleaner
	Frame Open / Close
	Frame Locking Device
	Automatic Zero (0)
	Lubrication system
	Indicating Button Lamp
	Touch screen
	Emergency Stop
	Machine Rail

Printing Unit:

Unit	Part / System
Printing Unit	Print Cylinder
	Anilox Roll
	Doctor blade
	Vacuum System for Board Transfer
	Register System
	Ink System
	Indicating button Lamp
	Automatic Zero (0)
	Automatic restoration
	Frame Open / Close
	Frame Locking Device
	Emergency Stop

Slotting Unit:

Unit	Part / System
Slotting Unit	Structure 8 slotting shafts
	Creasing
	Slotter (7.5mm thickness blade)
	Register System
	Automatic Zero
	Frame Open / Close
	Lubricating Oil Pump
	Emergency Stop

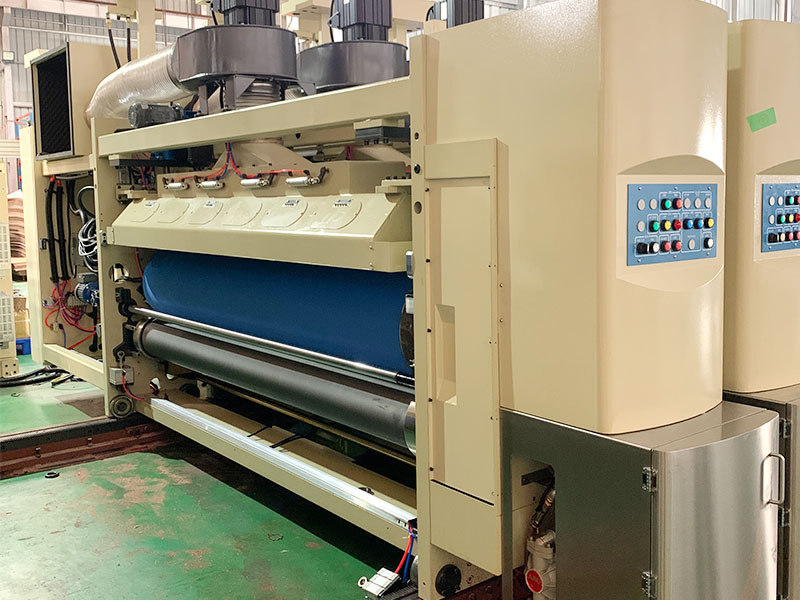

Die-cutting Unit:

Unit	Part / System
Die-cutting Unit	Die cut drum
	Anvil drum
	Feeding ring
	Register System
	Automatic Zero (0)
	Frame Locking Device
	Lubricating Oil Pump
	Emergency Stop
	Scrap conveyor
	Speed Compensation
	Anvil Grinding System

Servo Control System:

System	Part / System
Servo Control System	Servo Control System Touch Screen
	Information
	Production Planning
	Order Input
	Machine Setting

Due to rapid development of intelligent production, with characteristics of high reset precision, quick setting speed, stable working performance, movable full servo control flexo printer will more suitable for the industry 4.0 developing trend. The gear drive printer will be replaced by the servo driving flexo printer gradually.

The movable full servo control flexo printer machine is designed by Shinko Japan. All drawings are from Shinko Japan. On the mechanical designs, the fixed type is changed to open close type. The printer belt transfer system is changed to vacuum transfer system. The other mechanical designs are the same as Shinko Japan fixed type design.

Our Research and Development:

KESHENGLONG has a perfect Research and Development system, and owns a high level R&D team, leading capability of independent innovation, and complete producing, processing and manufacturing capability. We has Full computer gantry boring and milling machining center, CNC pentahedron boring and milling machine, 5 meter grinding machine etc., more than 200 set of processing equipment.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Installation, training how to use the machine and technical support.

* Engineers available to service machinery overseas.

cardboard feeder

automatic die cutter machine
